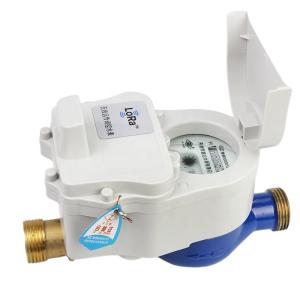

Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
Wireless remote meter is based on the wired remote meter, added the wireless module, the water meter has a routing function, construction and installation is simple, convenient, the network process automatically completed, solved the complex wiring construction problems. Wireless valve remote control water meter is based on the wireless remote meter, added the valve control function, solved the problems that user maliciously arrears of water charges, charges difficult, achieved a remote real-time monitoring and remote switching valves and prepaid functions. Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
Wireless remote reading lora water meter features:
Wireless lora water meter:
1. Fully self-organizing network, automatic optimization of routing, automatic discovery and removal of nodes;
2. Mesh MESH structure, stable performance, high reliability;
3.8 grade routing, the maximum support up to 1024 nodes;
4. Node module using the United States SETMECH low power consumption launch chip;
5. Encoding using efficient cyclic interleaving error correction coding;
6. Strong penetrating ability, far distance;
7. Use a unified 4-byte ID to support various protocols.
Working conditions:
| Flow range | Q1~Q3 (Q4 short time work not change error) |
| Ambient temperature | 5℃~55℃ |
| Ambient moisture | (0~93)%RH |
| Water temperature | cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃ |
| Water pressure | 0.03MPa~1MPa (short time work 1.6MPa not leak, no damage) |
| Pressure loss | ≤0.063MPa |
| Straight pipe length | fore water meter is 10 times of DN, behind water meter is 5 times of DN |
| Flow direction | should be the same as the arrow on the body directs |
Work power supply:
The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.
Main technical parameters:
| Model-DN | Flow range | Q3 | Q4 | Q2 | Q1 | Min. reading | Max. reading | |
| Q3/Q1 | Q2/Q1 | m3/h | m3 | |||||
| LXSY-15 | 80 | 1.6 | 2.5 | 3.125 | 0.05 | 0.03125 | 0.0001 | 999999 |
| LXSY-20 | 80 | 1.6 | 4.0 | 5.0 | 0.08 | 0.05 | 0.0001 | 999999 |
| LXSY-25 | 80 | 1.6 | 6.3 | 7.875 | 0.126 | 0.07875 | 0.0001 | 999999 |
Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
Ordering precautions: The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.
The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.
Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
WE ARE THE ONLY ENTERPRISE IN CHINA INTEGTATED WITH WATER METER AND FLOW METER
We have cooperated with many famous companies in the world, if you give us a chance to serve you, we trust we'll be your best supplier in China.
WELCOME TO CONTACT US!
FAQ: Digital Lora Small Smart Water Meter not Wifi wireless remote reading with concentrator
1.Are you a trade company or a manufacturer?
Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.
2.What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
3.If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.
4.Can you produce the products according to my own drawings?
Yes, we can do OEM according to your requirement.
Please contact us for the WHOLE CATALOGUE, our technical engineers are waiting for solving your problems now!! Action now!!
